Hi,
We're trying to understand how to hide message flows from structure diagrams. For example, in an Application System Structure diagram.

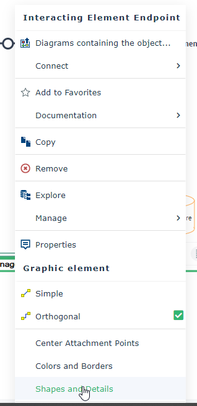

We tried right-clicking the Interaction object, and then selecting the "Shapes and Details" option, like this:
But, this brings up a menu which has 2 issues: 1) it is hard to understand how to use it 2) No combination of options actually hides the message flows.
Lastly, we tried using the Views and Details setting of the diagram to disable option for displaying the message flows for all Interactions on the page.
However, this setting did not make any difference. No matter what I changed - the message flows remained visible.
Hello,
You can hide message flows but I agree this is not user friendly and interface is misleading. It is definitly something we need to fix/improve.
When you create an Interaction, 3 objects are created in fact : The interaction itself and 2 endpoints (provider and consumer ends). More other, 3 types of messages flows exist : outcomes, upstream contents (messages sent by provider and received by consumer) and downstream contents (messages sent by consumer and received by provider).

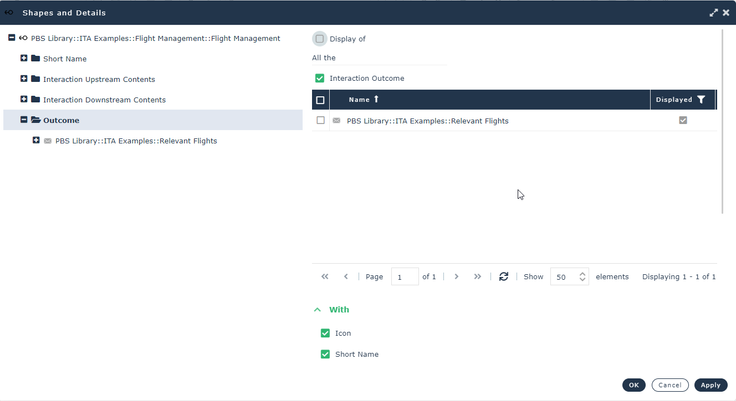

To hide outcome mesage, you need to open Shapes and Details menu on Interaction (click on name/middle of the shape) and de-select "Display" check box of "Outcome" option

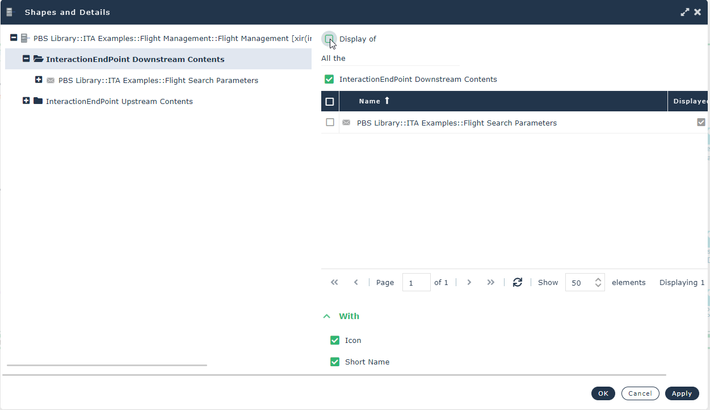

To hide downstream contents, you need to open Shapes and Details menu on Provider Interaction Endpoint and de-select "Display" check box of "InteractionEndPoint Downstream Contents" option.
To hide upstream contents, you need to open Shapes and Details menu on Consumer Interaction Endpoint and de-select "Display" check box of "InteractionEndPoint Upstream Contents" option.

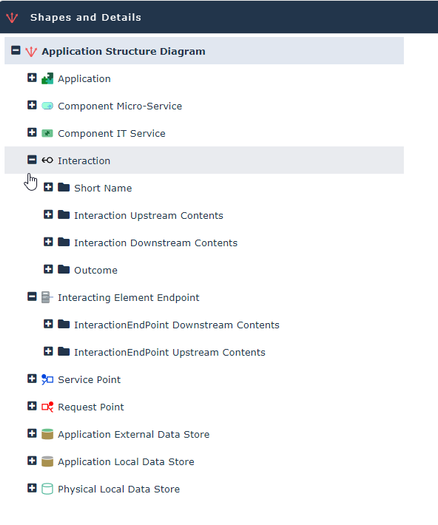

It is possible to hide messages for all interactions in diagram by selecting all interactions or objects (CTRL+A) and opening Shapes and Details menu (you just open the Interaction or Interaction Endpoints trees to find same options that will apply on whole selection).
