Creating custom Title Blocks for diagrams

[antpopple]

Hey there!

Does anyone have any tips/examples on how to create their own diagram Title Blocks?  We'd like to align our diagrams with the organisation's colour palette.

Thanks, Ant

[PBessodes]

OK.
So you need to install a specific module (dedicated for customization) and put the new file (legend.mgs that you have personalized) in the following folder (to adapt to your installation path):

"C:\ProgramData\MEGA\Hopex Application Server\5004\.shadowFiles\has.custom\15.2.0+17\hopex.core\Mega_Std\"

[antpopple]

HI @PBessodes ... I should have mentioned that we're on v6.1 🙂

I found the folder on my Dev server.  Even with the help guide, it looks pretty complex.  I'll talk to our local support to see if they have any worked examples.

Thanks for your reply!

[PBessodes]

Hello,

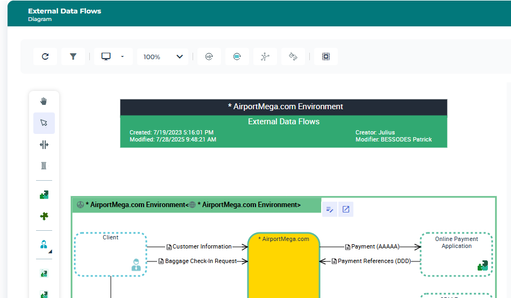

The Title block is a standard Hopex shape: legend.mgs which you can find in the Hopex "..\Mega_Std\pictures.9000\method" folder ("..." depends on your version and installation path).

To personalize it, you need to use the Shape editor in windows client and follow the personalization method to install it (installing a personalization depends on your version and installation type).
